SOLID CARBIDE
HP / AL3 / Square Endmill
High Performance – AL3 – Square · Technical specifications, application data and product support.
PRODUCTHigh Performance – AL3 – Square
PRODUCT

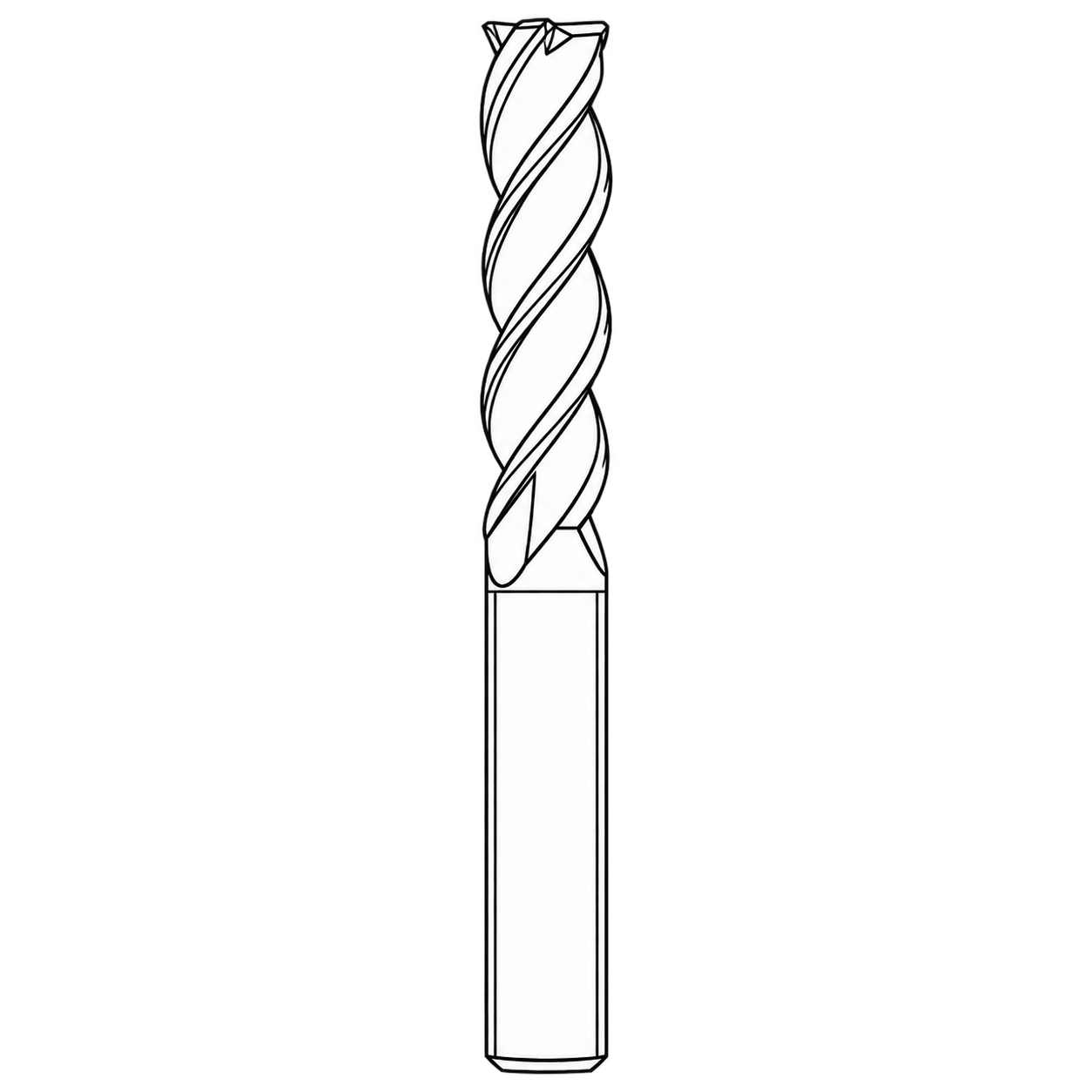

HP / AL3 / Square EndmillTECHNICAL DIAGRAM
Application / dimensional drawing↔
↔ Drag the divider to compare the product image and technical diagram.
MSTM CODE
High Performance – AL3 – Square
Review technical information, application data and product visuals, then send this product directly to our team for a quotation or application discussion.
AT A GLANCE
Technical Specifications
Performance
High
Application
Non-Ferrous Materials
Coating
Uncoated
Flutes (Z)
3
Diameter (DC)
Ø3–Ø20 mm
Flute Length (APMX)
4–32 mm
Overall Length (OAL)
50–104 mm
APPLICATION DATA
Technical Data
Application data provided by MSTM for this product. Select one or more rows and send them with your quotation request.
| MSTM Product Code↕ | Diameter (DC)↕ | Shank Diameter (DCON)↕ | Flute Length (APMX)↕ | Overall Length (OAL)↕ | Corner Radius↕ |
|---|
