SOLID CARBIDE
HP / AL3 / Corner Radius Endmill
High Performance – AL3 – Corner Radius · Technical specifications, application data and product support.
PRODUCTHigh Performance – AL3 – Corner Radius
PRODUCT

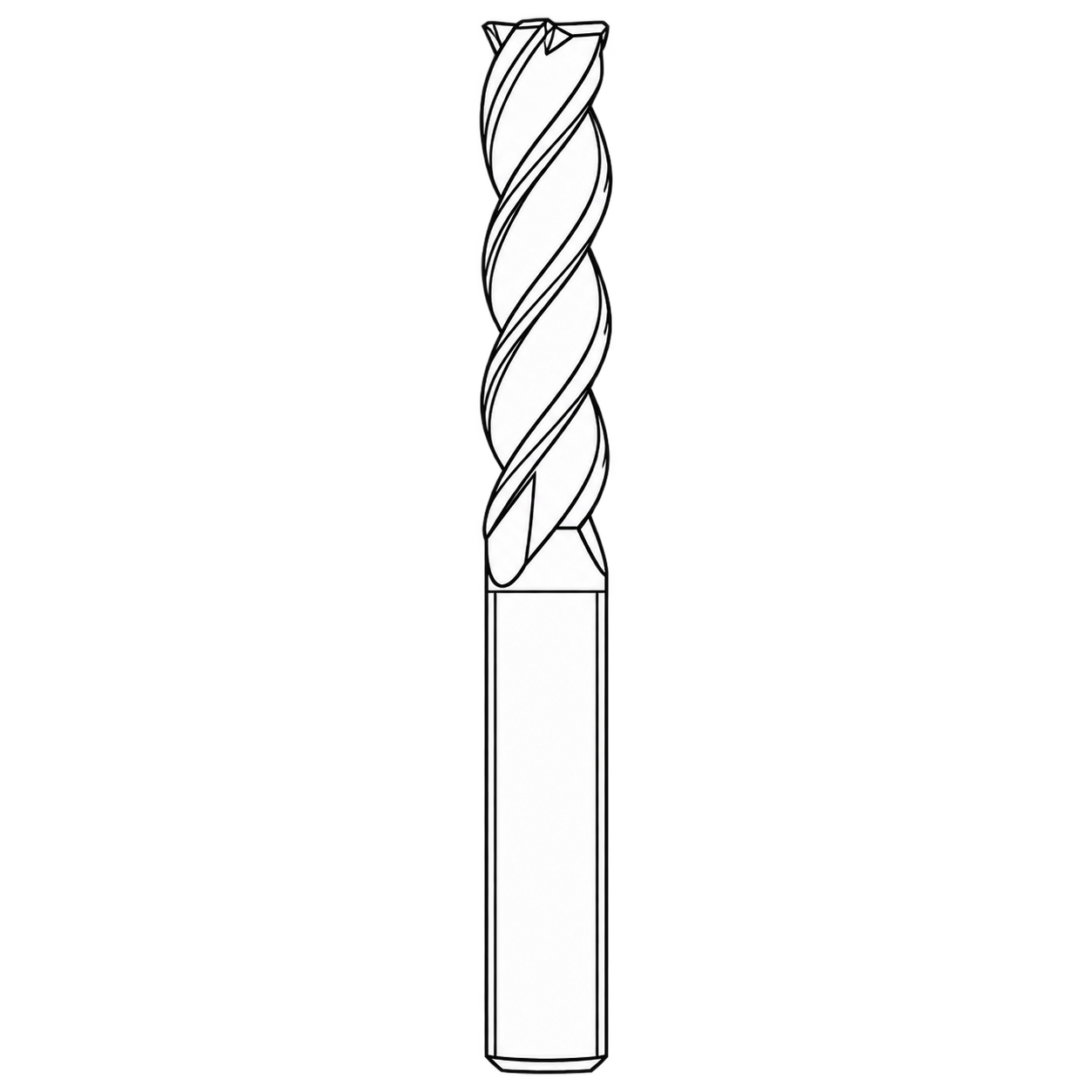

HP / AL3 / Corner Radius EndmillTECHNICAL DIAGRAM
Application / dimensional drawing↔
↔ Drag the divider to compare the product image and technical diagram.
MSTM CODE
High Performance – AL3 – Corner Radius
Review technical information, application data and product visuals, then send this product directly to our team for a quotation or application discussion.
AT A GLANCE
Technical Specifications
Performance
High
Application
Non-Ferrous Materials
Coating
Uncoated
Flutes (Z)
3
Diameter (DC)
Ø3–Ø20 mm
Corner Radius
R0.3 / R0.5 / R1 / R2
Flute Length (APMX)
4–26 mm
Overall Length (OAL)
50–92 mm
MATERIAL CODE RECOMMENDATION
P
·
M
·
K
·
N
●
S
·
H
·
● Recommended○ Good
APPLICATION DATA
Technical Data
Application data provided by MSTM for this product. Select one or more rows and send them with your quotation request.
| MSTM Product Code↕ | Diameter (DC)↕ | Shank Diameter (DCON)↕ | Flute Length (APMX)↕ | Overall Length (OAL)↕ | Corner Radius↕ |
|---|
